TransGard Premium Snake Fence

Proven Protection At More Than 4,000 Substations​

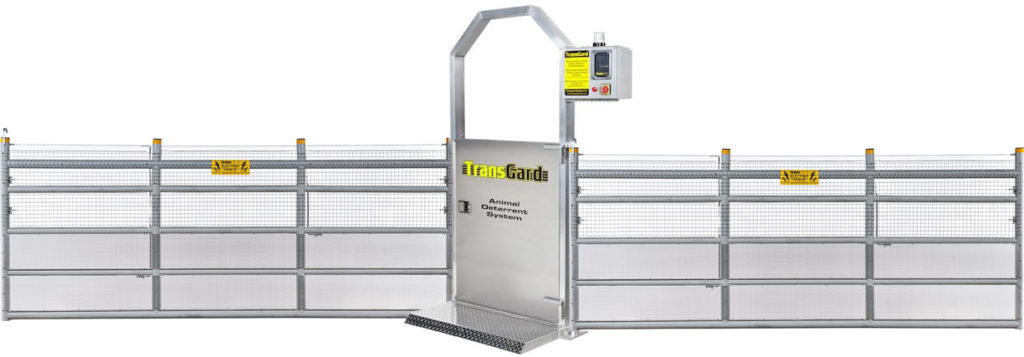

snakewide

Overview: A Track Record of Success


Every year, animals cause hundreds of substation power outages that leave thousands without power—and cost millions in repairs. TransGard manufactures and installs the only substation fencing that delivers a humane—but effective—electric shock that deters climbing animals, an approach the IEEE calls the most effective barrier against animal incursion. With TransGard’s PREMIUM SNAKE PANELS, this solution offers additional protection from snakes as small as a ¼” in diameter.

At a Glance: A Unique Solution to Substation Outages

TransGard’s specially engineered substation fencing system offers significant advantages to substation operators:

Easy installation

A crew of three can complete a 300-foot TransGard enclosure in just four hours with basic tools—no special training, no heavy equipment, and no power interruption required during installation.

Freestanding protection

TransGard fencing installs on the ground, requiring no postholes, foundation or concrete. TransGard requires far less material, expense and time than a perimeter fence.

Modular design

Construction using a series of panels enables a modular design–any section can be used as hinged gateway, providing quick maintenance access. Substations can easily reuse panels, reconfigure a fence, or add new panels to expand a system.

Engineered entryway

The system offers substation access through a non-electrified entry system, designed with a smooth finish and tight clearances to prevent animal intruders.

Prevent incursion from a wide range of species

Squirrels, raccoons, opossums, cats, iguanas, frogs, snakes and other climbing animals–none can breach the TransGard fence.

Durable materials

Built with stainless steel, aluminum, and PVC that conforms to the UL94 V-0 flammability standard for plastics protect your assets by minimizing the spread of fire and reduce maintenance.

Galvanized steel bases

Specially designed circular stand bases create a strong, level fencing system.

Snake protection

TransGard’s optional snake prevention panels deter snakes as small as 1/4″ in diameter.

Components of a TransGard Fence

PRIMARY ENTRYWAYS

Primary Entryways house the Control Center, which contains the system’s electronic components, including the digital voltmeter, energizer, alert beacon system, SCADA module and more

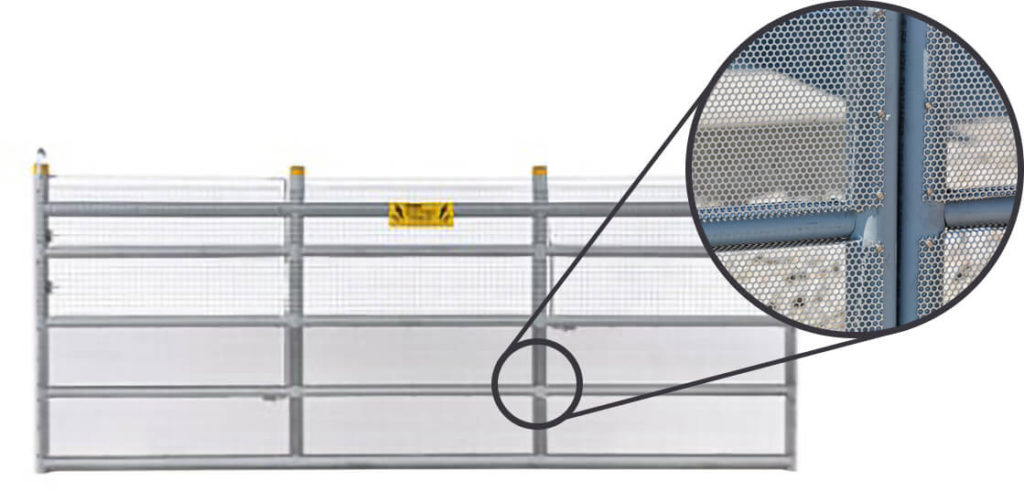

Premium Snake Panels

Premium Snake Panels are designed to prevent incursion from snakes along with other climbing animals as small as a ¼” in diameter.

Secondary Entryways

Secondary Entryways are non-energized and provide additional means of egress to your fence.

EMERGENCY EXIT PANELS

TransGard’s Emergency Exit Panels add additional points of exit from the fence enclosure for personnel safety. Equipped with 14 GAW zinc coated wire mesh, providing 48” of vertical protection from climbing animals.

Wind Anchors

TransGard’s Wind Anchoring System (Patent Pending) improves the fence’s performance in areas that experience high sustained winds, or in areas that cannot easily accommodate the recommended zig-zag installation pattern. Using this option secures the fence panels, Primary and Secondary Entryways in a variety of surfaces from sand to asphalt to withstand a pull-out force up to 14,000 lbs.

You May Also Like...

autonomic bird laser


Laser Bird Defense

For decades, bird incursions at substations have resulted in headaches, outages and expensive cleanups due to corrosive bird droppings.

FAQs: Answers to Common Question

Yes. Next to weather-related damage, animal intrusions are the most common causes of substation outages. Animal incursions—from squirrels, raccoons, snakes, domestic cats and other climbing animals—cause substation outages in urban, suburban and remote locations from Maine to California. Outages can lead to thousands of frustrated customers, damage to a power provider’s reputation, and unplanned expenses. In fact, a single outage can involve tens of thousands of dollars in equipment, man-hours and other repair costs—and with more substations employing sophisticated automation equipment, those costs are on the rise.

TransGard was created exclusively to solve the growing problem of animal incursions at substations. Developed by a team of engineers and scientists with 60 years of background in animal containment and exclusion, the TransGard fence has undergone extensive research and field-testing. These fences have a 20-year track record of keeping climbing animals away from more than 3,000 locations at dozens of utilities in North America.

TransGard fences prevents incursion from a wide range of species of climbing animals including squirrels, raccoons, opossums, cats, iguanas, frogs, snakes and others. The fence improves overall substation security—including repelling potential copper thieves.

No. A crew of three can complete a 300-foot TransGard enclosure in just four hours with basic tools—no special training, no heavy equipment, and no power interruption required. TransGard requires no postholes, foundation or concrete to anchor the fencing components—each fence panel is secured via a specially designed circular galvanized stand base.

No. The system’s basic building block, the 4′ x 10′ panel, creates a modular design—it can be as large or as small as your substation requires. Substations can easily reconfigure a fence, or add new panels to expand a system, and any section can be used as a hinged gateway, providing quick maintenance access. The system also offers substation access through a non-electrified entry system, designed with a smooth finish and tight clearances to prevent animal intruders.



No. TransGard fences deliver a mild, electric shock to anything that comes in contact with fence panels. This safe, humane approach instructs animals to keep away, protecting wildlife from electrocution within a substation. According to an IEEE survey, this form of substation protection provides the most effective barrier against animal incursion.

The durable PVC and steel fence materials are designed to be resistant to high winds, cold and bad weather. Most notably, the zig-zag pattern of panel installation adds overall fence stability and resistance to wind.

No. TransGard recommends an annual maintenance check that takes about 30 minutes to perform. That maintenance includes things like keeping the fence area clear from vegetation overgrowth or downed branches. Maintenance teams are also instructed to make sure no gaps appear between fence panels or between the fence and the ground.

At a Glance: Ease of Installation

As we’ve noted above, one of the biggest assets of a TransGard fence is how quickly it can be installed. A team of just 2-3 people can place a fence around a substation in less than a day, without the need for specialized equipment, and without having to power down the substation.

To see just how easy this installation is, click on the short video below.

NEW eBook: Impact of Bird Waste + Substation Damage | Download Your Copy Now

X

Premium Snake Panel

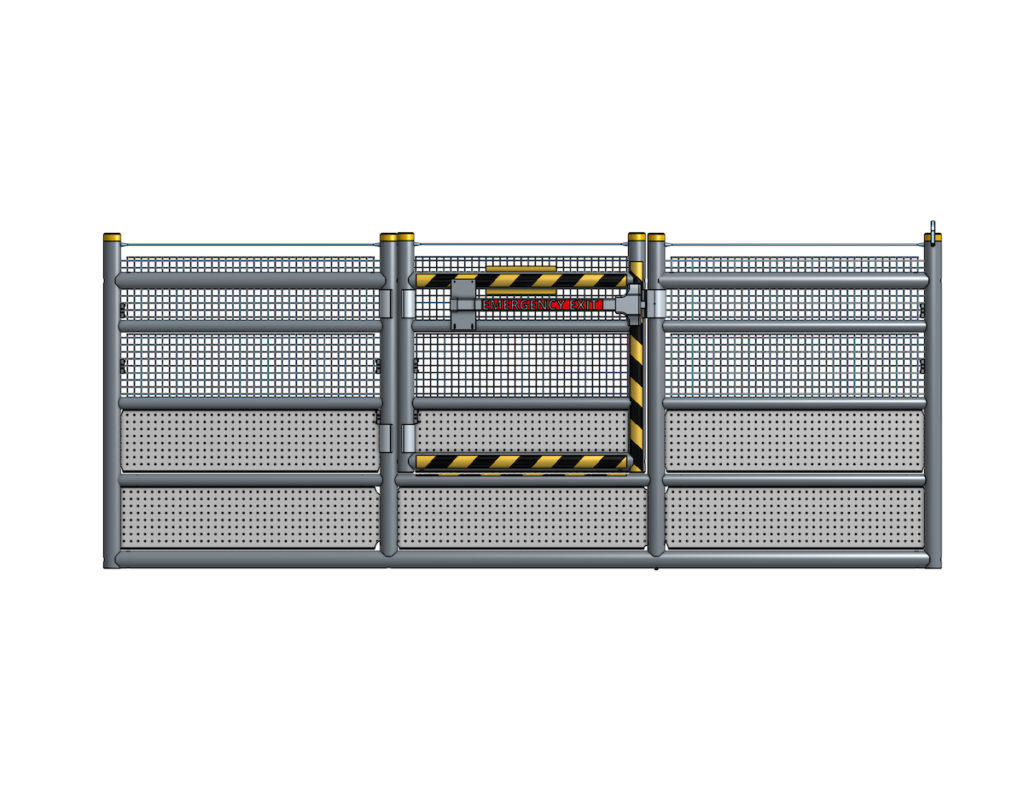

TG S400 A Snakestop
TransGard’s patented modular Premium Snake Panels come equipped with ¼” perforated 3003 H13 aluminum installed on the lower two sections of each panel.  This adds a level of protection against snakes, and other crawling animals, as small as ¼” in diameter. Each panel stands 48″ tall offering protection from all climbing animals.

Panel Specifications:
  • Constructed of durable, extruded PVC that meets UL94 V-0 flammability standards
  • Electrical connections use class 3 galvanized wire with a non-flammable oxide inhibiting grease for maximum corrosion resistance
  • Available in three different lengths to address any site requirements: 10′, 6’6″, and 3’4″
  • Upper two sections are constructed of 1” x 1” 14 GAW zinc-coated wire mesh, providing over 48” of vertical protection from climbing animals
  • Installed with galvanized steel stands that are secured 3-5” in gravel: no postholes, foundation or concrete required
For details on further securing your fence with TransGard’s Wind Anchoring System (Patent Pending) click here.

Primary Full-Door Entryway

full door entryway

TransGard’s Primary Full-Door Entryway serves as the main means of egress and houses the systems Control Center.


Entryway Specifications:

  • Frame is constructed with extruded 6061-T6 aircraft grade aluminum for ultimate strength and corrosion resistance
  • For additional means of egress, add a TransGard Secondary Entryway (available in Full-Door and Step-Plate)
  • Safety hinges to prevent contact with an energized fence
  • Polished aluminum surface to prevent climbing animals
  • Entryway is non-energized for personnel safety and access while the fence is active.

System Power Requirements:



120VAC power. The TransGard fence system draws less than 4 amps during operation. (TransGard recommends using a 15 to 20 amp breaker)

Control Center Specifications:

  • Digital voltmeter, energizer, alert strobe system, LED indicator, power supply/conditioner and SCADA contact module housed in a NEMA 4X enclosure (UL508A listed E61997)
  • Equipped with a lockout/tagout master disconnect switch
  • Operating Temperature Range -40C to 60C

Primary Step-Plate Entryway

TransGard’s Primary Step-Plate Entryway is designed for sites that often experience snow to allow operators to easily enter the substation for maintenance during the winter months.  The primary entryway is the main means of egress and houses the system’s Control Center.


Entryway Specifications:

  • Frame is constructed with extruded 6061-T6 aircraft grade aluminum for ultimate strength and corrosion resistance
  • Safety hinges prevent contact with an energized fence
  • Polished aluminum surface further prevents climbing animals
  • Entryway is non-energized for personnel safety and access while the fence is active
  • Entryways have the same width dimension as our smallest panel size, 3’4″

System Power Requirements:



120VAC power. The TransGard fence system draws less than 4 amps during operation. (TransGard recommends using a 15 to 20 amp breaker)

Control Center Specifications:

  • Digital voltmeter, energizer, alert beacon system, LED indicator, power supply/conditioner and SCADA contact module housed in a NEMA 4X enclosure (UL508A listed E61997)
  • Equipped with a lockout/tagout master disconnect switch
  • Operating Temperature Range -40C to 60C

Secondary Full-Door Entryway

full door gateway

TransGard’s Secondary Full-Door Entryway serves as an additional means of egress:



Entryway Specifications:

  • Frame is constructed with extruded 6061-T6 aircraft grade aluminum for ultimate strength and corrosion resistance
  • Safety hinges prevent contact with an energized fence
  • Polished aluminum surface further prevents climbing animals
  • Entryway is non-energized for personnel safety and access while fence is active
  • Entryways have the same width dimension as our smallest panel size, 3’4″

Secondary Step-Plate Entryway

step plate gateway

TransGard’s Secondary Step-Plate Entryway is engineered for sites that experience annual snowfall to allow operators to easily enter the substation for maintenance during the winter months, and serves as an additional means of egress:



Entryway Specifications:

  • Frame is constructed with extruded 6061-T6 aircraft grade aluminum for ultimate strength and corrosion resistance
  • Safety hinges prevent contact with an energized fence
  • Polished aluminum surface further prevents climbing animals
  • Entryway is non-energized for personnel safety and access while fence is active
  • Entryways have the same width dimension as our smallest panel size, 3’4″

Emergency Exit Panels

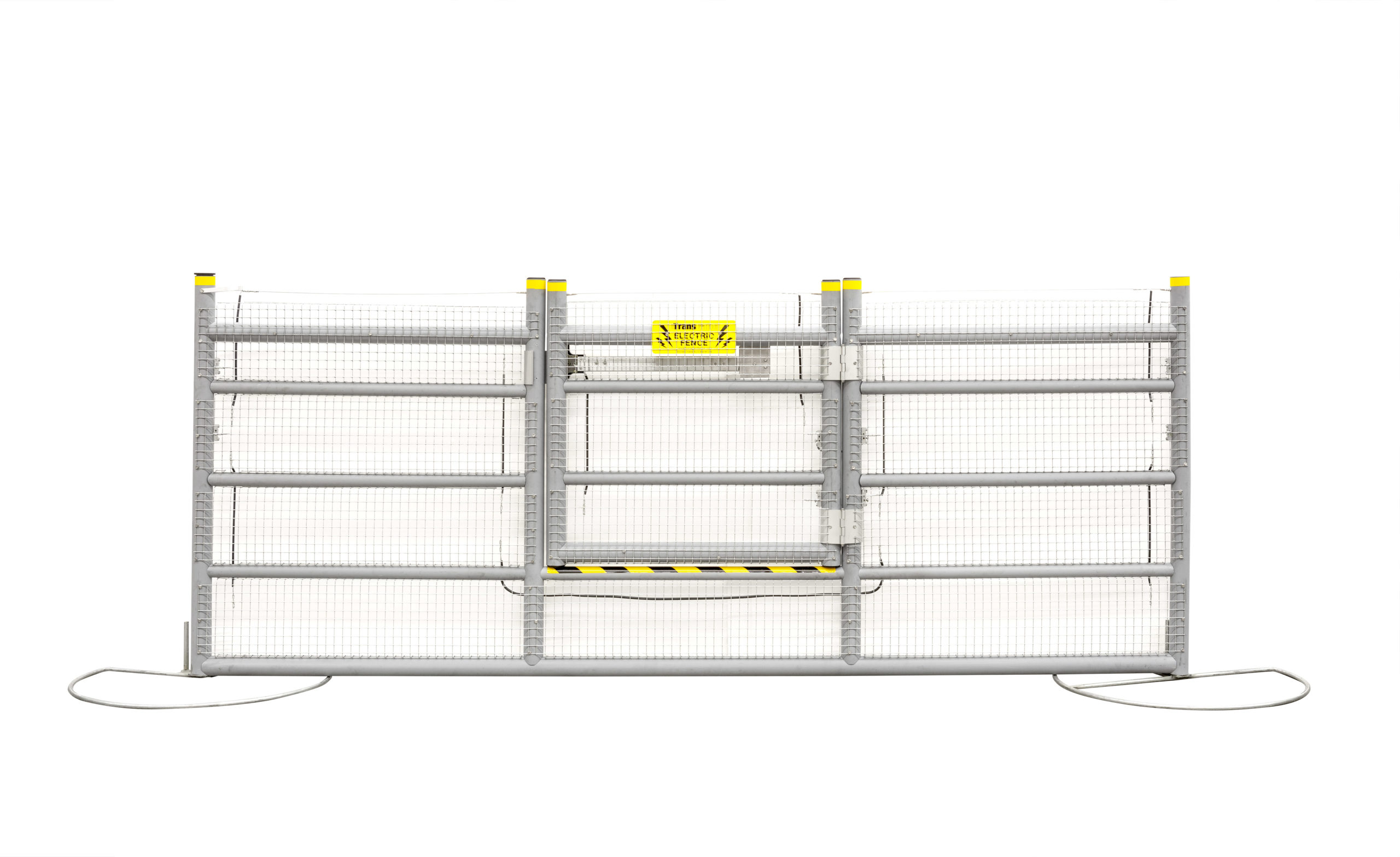

Emergency Exit Panel Outside scaled
Emergency Exit Panel Open Exit scaled

TransGard’s Emergency Exit Panels add additional points of exit from the fence enclosure for personnel safety. Equipped with 14 GAW zinc coated wire mesh, providing 48” of vertical protection from climbing animals.


Panel Specifications:

  • Constructed of durable extruded PVC that meets UL94 V-0 flammability standards
  • Feature patented hinge technology
  • Electrical connections use class 3 galvanized wire with a non-flammable oxide-inhibiting grease for maximum corrosion resistance
  • Available in 10′ panels and can be configured at the time of initial installation, or can retrofit existing installations
  • Installed with galvanized steel stands that are secured 3-5” in gravel: no postholes, foundation or concrete required
  • Hinges are constructed with extruded 6005A-T6 aluminum and clear satin anodized for ultimate strength and corrosion resistance

PATENT PENDING

Fence Wind Anchoring System

INST install anchor with drill scaled
Wind Anchor Screws

TransGard’s Wind Anchoring System will secure your Standard or Premium Snake Fence System, including Primary and Secondary Entryways, in a variety of surfaces from sand to asphalt to withstand a pull-out force up to 14,000 lbs.


System Specifications:

  • Constructed of durable 304 Stainless Steel for ultimate strength and corrosion resistance
  • Anchors are cast 356 aircraft-grade aluminum, heat-treated to T6 specifications
  • UV Resistant UHMW threaded cap to safely secure the fence to the stand
  • System can be configured at the time of initial installation or can retrofit existing installations

Learn more about our fence solutions.






PATENT PENDING
